Joint Bracket SKL151 Wall
40071
Price: £13.98 each
77

Overview

Sliding door joint wall bracket for 150 series sliding door systems.

150 series systems are used in straight sliding door systems, folding door systems, industrial curtain systems and other applications such as conveyor systems.

This series is typically used in sliding screens and grills, overhead runways, horse boxes, agricultural buildings, storage systems, the shipbuilding industry, both interior and exterior medium weight projects.

SpecificationSeries 150 Fixing wall

Bracket interval: max. 1000 mm

Material: galvanized steel

Door thickness max. 45 mm

Additional info with joint screws

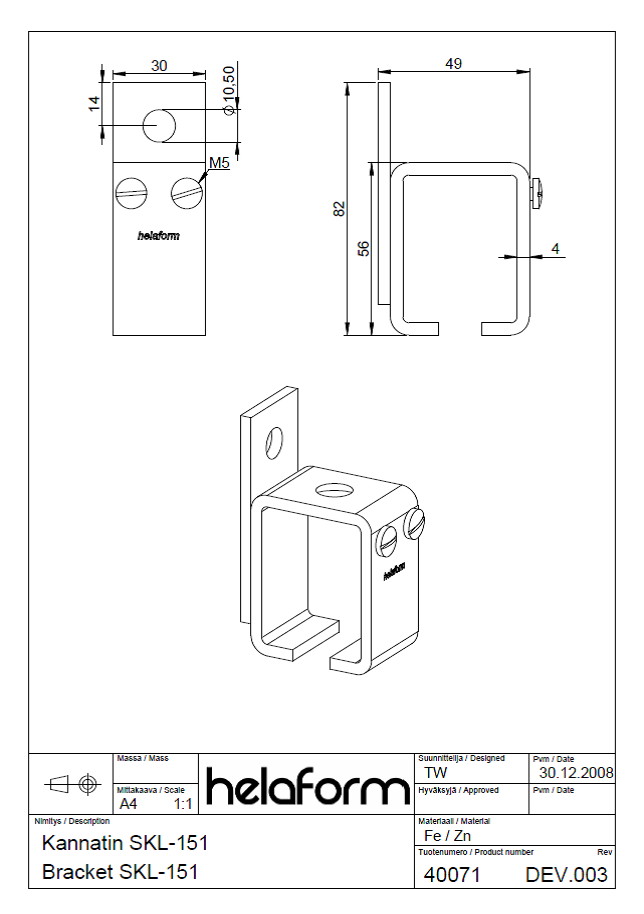

Below is the warranty and specification

Helaform warranty Helaform Spec Sheet
